914 Chassis

A Reliable Partner That Enables Profit.

All 914 Chassis

Home Buses 914 Chassis

Safety Factors

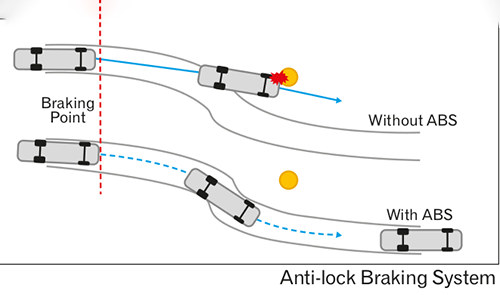

Braking System

Best-in-class Anti-lock braking system with wider brake liners and exhaust brake as standard fitment, coupled together with antiroll bar in front & rear ensures the utmost safety in the BharatBenz Chassis

Comfort

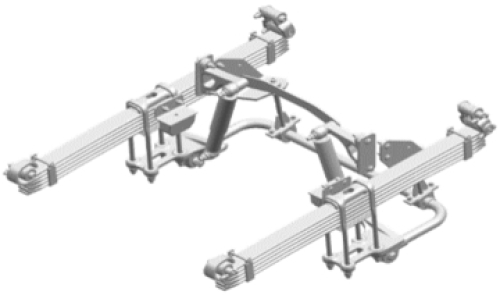

Suspension

Meticulously designed Parabolic suspension system with integrated fine tuned shock absorber and anti-roll bar is ensures the best in class riding comfort

Stability

Longer Service Intervals

Best in class reliability with optimized service intervals for engine, transmission, axle.

Specifications

	914 Chassis
Engine:	4D34i
General characteristics:	4 Cylinder, Vertical In-line BSVI, inter-cooled, turbo-charged
Engine Capacity:	3907cc
Engine Max output:	147HP (110kW) @ 2500rpm
Engine Max torque:	460Nm @ 1500rpm
Gearbox Model:	MO36, Synchromesh
No. of Gears:	6 forward with overdrive+1 reverse
Clutch Type:	Organic, Single dry plate, ø330mm
Brake Type:	Dual Circuit, full air, S-Cam type drum
Auxiliary Brake:	Exhaust Brake
Electronic Brake:	Anti-Lock Braking System (ABS)
Front Axle:	Heavy-duty reverse elliot 'I' beam
Rear Axle:	Fully floating type
Suspension Type:	Parabolic Suspension at Front and Rear
Anti roll bars:	Double acting telescopic shock absorber and anti-roll bars at Front and Rear
Steering Type:	Power Steering, adjustable and tiltable
Tyre Type:	235/75 R 17.5 tubeless tyres
Battery:	2x12V, 75Ah
Fuel Tank/Filling Capacity:	160L
Adblue Tank/Filling Capacity:	43L/36L
Seat Layout/capacity:	Suitable for 2x1/2x2/3x2 layout
Wheelbase (mm):	4250
Overall length (mm)	7383
Overall height (mm)	2151
Min. ground clearance (mm)	192
