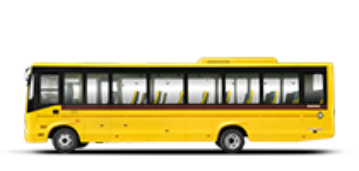

School Bus

Ride Protected. Ride Happy.

All School Bus

Safety
Comfort
Stability

Home Buses School Bus

Safety Factors

Sturdy framework

Improved sturdy bus body design with High grade tubular structure, best in industry roll over angle of 44deg and lower center of gravity, ensures safer travel for the passenger in the Bus

Robust body

Meticulously designed bus with Anti-skid Silicon embedded vinyl flooring, fire retardant interiors, easy accessible emergency door, Tubeless radial tyres, Bus connect to ensure children safety during children travel

Braking System

Best-in-class Anti-lock braking system with wider brake liners and exhaust brake as standard fitment, coupled together with antiroll bar in front & rear ensures the utmost safety in the BharatBenz school Buses

Comfort

Comfortable Seats

BharatBenz school bus new milestone in comfort and convenience. Every seat in our buses is a cocoon of comfort, designed to give a comfortable ride to school and back home. BharatBenz school buses are loaded with features that completely fulfills the childrens needs.

Suspension

Meticulously designed Parabolic suspension system with integrated fine tuned shock absorber and anti-roll bar is ensures the best in class riding comfort

Stability

Longer Service Intervals

Best in class reliability with optimized service intervals for engine, transmission, axle and corrosion preventive body ensures the lowest maintenance.

Better Handling

The wide chassis frame width and tubeless radial tyres enhance the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus.

Specifications

	School Bus

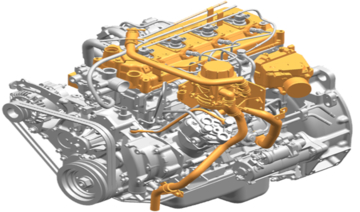

Engine:	4D34i
General characteristics:	4 Cylinder, Vertical in-line BSVI, inter-cooled, turbo-charged
Engine Capacity:	3907cc
Engine Max output:	170HP (125kW) @ 2500rpm
Engine Max torque:	520Nm @ 1500rpm
Gearbox Model:	M036, Synchromesh
No. of Gears:	6 forward with overdrive+1 reverse
Clutch Type:	Organic, Single dry plate, ⌀ 325mm
Brake Type:	Dual Circuit, full air S-Cam type drum
Auxiliary Brake:	Exhaust brake
Electronic Brake:	Anti-lock Braking System (ABS)
Front Axle:	Heavy-duty reverse elliot 'I' beam
Rear Axle:	Fully floating type
Suspension Type:	Parabolic suspension at front and rear
Anti roll bars:	Double acting telescopic shock absorber and anti roll bars at front and rear
Steering Type:	Power steering, adjustable and tiltable
Tyre Type:	235/75 R 17.5 tubeless tyres
Battery:	2x12V, 120Ah
Fuel Tank/Filling Capacity:	171L/160L
Adblue Tank/Filling Capacity:	43L/36L
Seats:	Bench type seats with under seat luggage racks, chin guards, handholds and aisle side hold
Seat Layout/capacity:	3 x 2 layouts with 49 bench type seats (Option - 2x2 layout with 39 HHR seats)
Floor:	Marine grade plywood, Anti-skid vinyl top layer
Passenger door:	In-swing, Automatic
Windows:	Fixed glass
Emergency exit:	Door at rear RHS, rear breakable glass, all windows breakable
Emergency kit:	Fire extinguisher (5kg x2 ), First-Aid kit
Hatrack:	Hat rack with Free Flow vents (Option – Modular Hat rack)
Lights:	4+1 standard LED lights with integrated night lamp distributed through saloon area
Safety features:	Seat belts, provision for CCTV, GPS, RFID and navigator, retractable first step, door opening alarm, guarded driver area, emergency alarm, stop sign
Fitments:	Notice Board
