A Reliable Partner That Enables Profit.

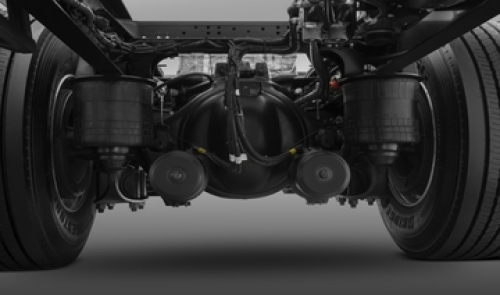

BharatBenz 1824 Chassis is loaded with glide air suspension at the front and rear that guarantees at most comfortable ride over long distances. Utilized suspension assembly integrated with a fine-tuned shock absorber to provide excellent ride comfort for both the passenger and the driver.
The wide chassis frame width and tubeless radial tyres enhances the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus.

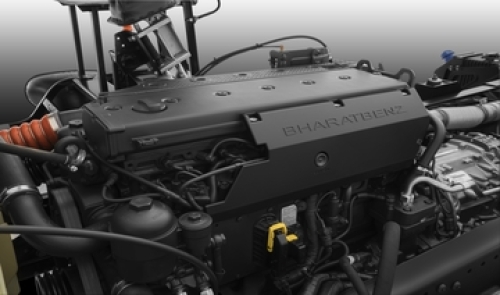

World class proven OM 926 engine with optimized service intervals for engine and other aggregates like transmission, axle etc., ensures reliability in operations.
1824 Chassis | |
Engine: | OM926i |
Capacity/ displacement: | 7200 cc |
Maximum Power: | 240 hp (180kW) @2200 rpm |
Maximum Torque: | 850Nm@ 1200-1600 rpm |
Fuel Injection Pump: | ECU controlled, Unit Pumps |
Gearbox Model: : | G85 OD, 6 speed |
Clutch Type: | 395mm dia, Dry Single plate type |
Brakes: | Pneumatic, with automatic slack adjuster |
AuxiIiary Brake: | Engine brake + Exhaust brake + Retarder(Option) |
Front Axle : | IF7.0, reverse elliot type |
Rear Axle : | IR440, Single Speed, Hypoid drive |
Front Suspension : | Air suspension with 2 air bellows |
Rear Suspension : | Air suspension with 4 air bellows |
Anti Roll Bar & Shock Absorber : | Both in front & rear |
Fuel Tank Capacity : | 380 liters |
Adblue Tank/Filling Capacity : | 60 liters/ 51 liters |
Tyre Size : | 295/80 R22.5 |
Wheel Rim : | 8.25" X 22.5" |
Steering Type : | Power Steering, adjustable and tiltable |
Battery : | 2x 12V, 200Ah |
Alternator : | 1x100 Ah (2x100 Ah Retarder Variant) |
Frame Dimensions : | 253mm x 70mm x 7mm |
Wheel Base : | 6850 mm |
Overall Length : | 13196 mm |
Overall width : | 2530 mm |
Front overhang : | 2305 mm |
Rear overhang : | 4041 mm |
Restart Gradeability : | 22% |
Min Turning Circle Diameter (TCD): | 21 m |
Min Ground clearance : | 239 mm |
Max Permissible Legal GVW (kgs): | 18500 kg |
