1624 Chassis Arrow

A Reliable Partner That Enables Profit.

All 1624 Chassis white arrow
1624 Chassis

Safety Factors

Effective braking

Effective braking

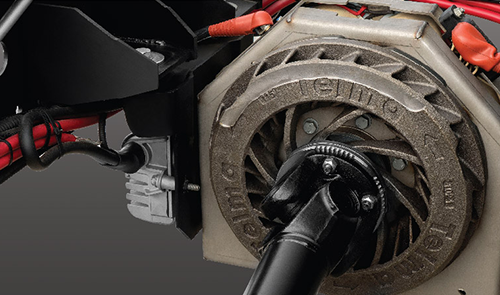

Best in class braking efficiency with friction less braking system. Combination of engine brake, electronic exhaust brake & CAN based electromagnetic retarder with 5 stage operation provides excellent safety.

Ride that glides

Ride that glides

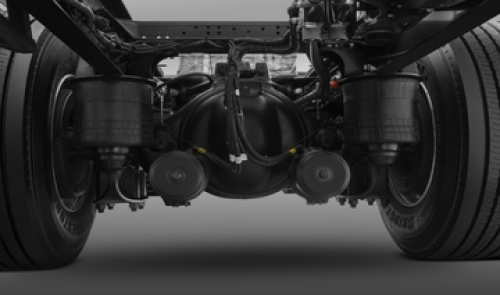

Bus chassis is equipped with electronically controlled pneumatic suspension with anti roll bar at front and rear suspension to ensure utmost safety specially during cornering.

Robust Chassis

Robust Chassis

Rigid chassis frame with best in class 7mm thickness integrated with alligator type cross members for higher strength. Factory supplied regulatory devices AIS 140, RPAS ensures safety.

Comfort

Suspension
Suspension

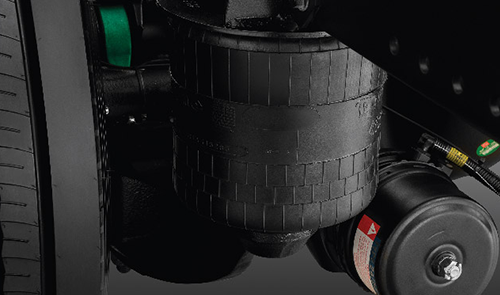

BharatBenz 1624 Chassis is loaded with glide air suspension at the front and rear that guarantees at most comfortable ride over long distances. Utilized suspension assembly integrated with a fine-tuned shock absorber to provide excellent ride comfort for both the passenger and the driver.

Stability

Better Handling
Better Handling

The wide chassis frame width and tubeless radial tyres enhances the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus.

Longer Service Intervals
Longer Service Intervals

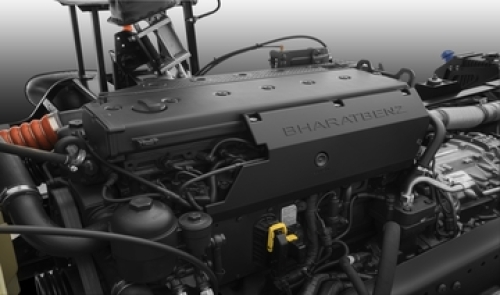

World class proven OM 926 engine with optimized service intervals for engine and other aggregates like transmission, axle etc., ensures reliability in operations.

Specifications bus specification

1624 Chassis
Engine: OM926
General characteristics: 4 Cylinder, Vertical In-line BSVI, inter-cooled, turbo-charged
Engine Capacity: 700cc
Engine Max output: 240 hp (180kW) @ 2200 rpm
Engine Max torque: 850Nm @ 1200-1600 rpm
Gearbox Model: G85 OD, 6 speed
No. of Gears: 6
Clutch Type: 395mm dia, Dry Single plate type
Front Axle: IF6.6, Reverse elliot type
Rear Axle: IR440, Single Speed, Hypoid drive
Suspension Type: Front : Air suspension with 2 air bellows Rear : Air suspension with 4 air bellows
Anti roll bars: Both in front & rear
Steering Type: Power Steering, adjustable and titable
Fuel Tank/Filling Capacity: 380 litres
Adblue Tank/Filling Capacity: 60 litres
Wheelbase (mm): 5950
Overall length (mm) 11765
Overall width (mm) 2530
Min. ground clearance (mm) 255mm x 73.5mm x 7mm

BharatBenz buses are profit enablers!!!
