Staff Bus Arrow

The Ride That Makes You Feel At Home.

All Staff Bus white arrow
  • Safety
  • Comfort
  • Stability

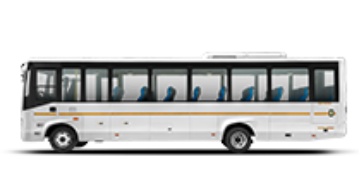

Staff Bus

Safety Factors

Robust body

Robust body

Bus is meticulously built for safety of passenger with features like anti-Lock Braking System, anti-roll bar, anti-skid silicon embedded vinyl flooring, fire retardant interiors, broader emergency exit door, wider frame, tubeless radial tyres, wider brake liners, fire extinguisher and first-aid kit as standard.

Sturdy framework

Sturdy framework

The wide chassis frame width and tubeless radial tyres enhances the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus.

Braking System

Braking System

Improved Bus body to house all possible safety measures. High-grade tabular structure with a lower centre of gravity & best in the industry rollover angle of 44 degrees. Factory fitted regulatory devices ITS, RPAS, FDAS etc. ensure passenger safety.

Comfort

Comfortable seats
Comfortable seats

BharatBenz staff bus new milestone in comfort and convenience. Every seat in our buses is a cocoon of comfort, designed to give relaxation to passengers in daily commute, resulting in excellent productivity at work and joyful time at home after work. BharatBenz staff buses are loaded with features that completely fulfills the commuters needs.

Suspension
Suspension

Meticulously designed Parabolic suspension system with integrated fine tuned shock absorber and anti-roll bar is ensures the best in class riding comfort

Stability

Better Handling
Better Handling

The wide chassis frame width and tubeless radial tyres enhances the stability of the vehicle, while the front and rear anti-roll bars result in improved cornering, better handling of the bus.

Longer Service Intervals
Longer Service Intervals

Best in class reliability with optimized service intervals for engine, transmission, axle and corrosion preventive body ensures the lowest maintenance.

Specifications bus specification

  Staff Bus
Engine: 4D34i
General characteristics: 4 Cylinder, Vertical in-line BSVI, inter-cooled, turbo-charged
Engine Capacity: 3907cc
Engine Max output: 170HP (125kW) @ 2500rpm
Engine Max torque: 520Nm @ 1500rpm
Gearbox Model: M036, Synchromesh
No. of Gears: 6 forward with overdrive+1 reverse
Clutch Type: Organic, Single dry plate, ⌀ 325mm
Brake Type: Dual Circuit, full air S-Cam type drum
Auxiliary Brake: Exhaust brake
Electronic Brake: Anti-lock Braking System (ABS)
Front Axle: Heavy-duty reverse elliot 'I' beam
Rear Axle: Fully floating type
Suspension Type: Parabolic suspension at front and rear
Anti roll bars: Double acting telescopic shock absorber and anti roll bars at front and rear
Steering Type: Power steering, adjustable and tiltable
Tyre Type: 235/75 R 17.5 tubeless tyres
Battery: 2x12V, 120Ah
Fuel Tank/Filling Capacity: 171L/160L
Adblue Tank/Filling Capacity: 43L/36L
Seats: Push back type (Option – High Head Rest)

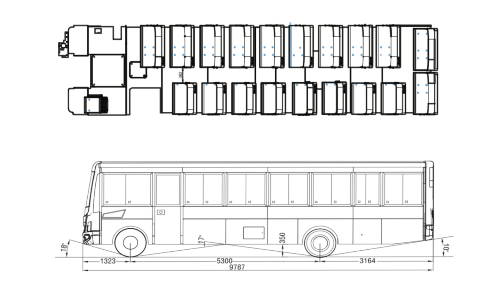

Seat Layout/capacity: 2x1 layout with 26+2, 2x2 layout with 35+2, 2x2 layout with 39+2 High Head Rest
Floor: Marine grade plywood, Anti-skid vinyl top layer
Passenger door: In-swing, Automatic
Windows: Fixed glass
Emergency exit: Door at rear RHS, rear breakable glass, all windows breakable
Emergency kit: Fire extinguisher (5kg x2), First-Aid kit
Hatrack: Modular hatrack with individual AC vents and service sets (Option – free flow)
Lights: 4+1 standard LED lights with integrated night lamp distributed through saloon area
Safety features: Seat belts, provision for CCTV, GPS, RFID and navigator, light at entry area , emergency alarm
Fitments: Notice Board

BharatBenz buses are profit enablers!!!
