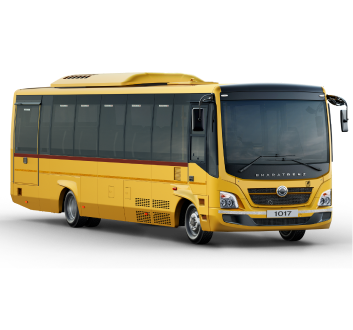

1017 स्कूल बस

भारतबेंज बसें अलग-अलग बैठने की क्षमता के साथ कई प्रकार की पेशकश करती हैं और बाजार की जरूरतों के लिए उपलब्ध हैं।

सेल्स पूछताछ ब्रोशर डाउनलोड करें

डाउनलोड करें बॉडी बिल्डिंग संबंधी दिशा-निर्देश

Specifications

specification-iconPowerTrain

Engine

TYPE NON AC AC
Model 4D34i 4D34i
Maximum Power, kW 125 kW @ 2500 rpm 125 kW @ 2500 rpm
Maximum Torque, Nm 520Nm @ 1500rpm 520Nm @ 1500rpm
No. of Cylinder, Displacement 4 cylinder, 3907CC 4 cylinder, 3907CC
Emission Compliance Bharat stage VI - OBD-2 Bharat stage VI - OBD-2
AC Compressor - TM31 /TM43

Gearbox & clutch

TYPE NON AC AC
Gearbox Model & Type G85, Improved 6 Speed Mechanical, Synchromesh Gears G85, Improved 6 Speed Mechanical, Synchromesh Gears
Clutch Type Organic, Single dry plate, with Hydro Pneumatic Clutch Booster Organic, Single dry plate, with Hydro Pneumatic Clutch Booster
Clutch Diameter (mm) 362mm 362mm

Axle

TYPE NON AC AC
Front Axle Model, Type IF3.6 IF3.6
Rear Axle Model, Type DANA S 130 DANA S 130
Rear Axle Ratio 4.56 4.56

specification-iconChassis Frame & Suspension

TYPE NON AC AC
Frame Section (H x W x T) (mm) 228 x 80 x 6 228 x 80 x 6
Suspension Parabolic Suspension with anti roll bar & double acting telescopic shock absorberat at front and rear Parabolic Suspension with anti roll bar & double acting telescopic shock absorberat at front and rear

specification-iconBrakes & Tyres

TYPE NON AC AC
Service Brake Dual Circuit, full air, S-Cam type drum Dual Circuit, full air, S-Cam type drum
Parking Brake Spring Actuated with Hand Brake Valve Spring Actuated with Hand Brake Valve
Auxillary Brake Exhaust Brake Exhaust Brake
Tyre Size 235/75 R 17.5 tubeless tyres 235/75 R 17.5 tubeless tyres

specification-iconSteering

TYPE NON AC AC
Steering Type Power Steering, adjustable and tiltable Power Steering, adjustable and tiltable

specification-iconElectricals

TYPE NON AC AC
Battery Capacity 2X12V, 75Ah 2X12V, 120Ah
Voltage 24V 24V

specification-iconDimensions (mm)

TYPE NON AC AC
Wheel Base 5300 5300
Overall Length 9815 9815
Overall Width 2350 2350
Overall Height 2950 3150
Front Overhang 1335 1335
Rear Overhang 3180 3180
Minimum Ground Clearance 192 192

specification-iconWeight

TYPE NON AC AC
Gross Vehicle Weight 10600kg 10600kg

specification-iconBody Features

TYPE NON AC AC
Seat capacity, Layout, type 39/49+1+D, 2x2/3x2, Bench/High Headrest 39/49+1+D, 2x2/3x2, Bench/High Headrest
Floor Marine grade plywood, Anti-skid vinyl top layer Marine grade plywood, Anti-skid vinyl top layer
Passenger door In-swing, Manual / Pneumatic In-swing, Pneumatic
Windows Sliding Glass Fixed glass
Emergency exit Door at rear RHS Door at rear RHS
Emergency kit Fire Detection & Suppression System, Fire Alarm & Protection System
Hatrack Grid type Modular, Grid type (Free flow AC)
Lights LED light with integrated night lamp distributed through saloon area LED light with integrated night lamp distributed through saloon area
Luggage Boot - Standard on LHS
AC & Compressor - Standard AC (28KW) / High Power AC (38KW)

specification-iconFuel Tank

TYPE NON AC AC
Fuel Tank/Filling Capacity 171L/ 160L 171L/ 160L
Adblue Tank/Filling Capacity 43L/ 36L 43L/ 36L
