For Hindi version of this website Click here
- Safety
- Comfort
- Stability
Safety Factors
Seat belts
To assure maximum safety, the BharatBenz School Bus is provided with individual seat belts to protect children during emergency braking.
Safe Interiors
The interiors of the bus are made of fire-retardant plastic and fabric that helps in effective prevention of fire. As the vinyl flooring is furnished with an anti-skid top layer, children can walk through safely and easily. Furthermore, the emergency exit is strategically located to allow quick evacuations.
Roll Over Strength
The unique structure of BharatBenz School Bus comes with high roll-over strength. The roll over angle of BharatBenz buses is 42 degree as against the standard norm of ARAI of 28 degree.
Comfort

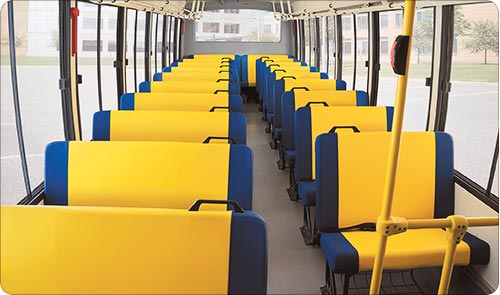

The wider bus body provides enough space for wider seats and gangways. These wider and deeper seats let children experience a cosy ride.

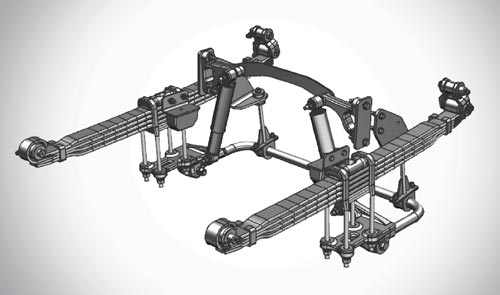

All BharatBenz School Buses are fitted with parabolic leaf spring suspension and finely tuned shock absorbers for a smoother ride.
Stability

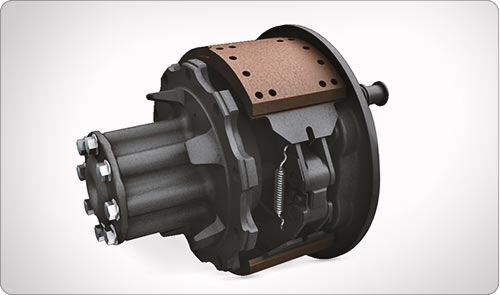

BharatBenz School Buses are equipped with a thick brake-lining to enhance the life of the brakes.
Each BharatBenz School Bus is engineered with best-in-class components to ensure maximum uptime and minimal maintenance.
The clutch lining of the BharatBenz School Buses is made with special organic material which improves its longevity.
Specifications
| 914 School Bus | 917 School Bus | |
| Engine: | 4D34i Fuso Platform | 4D34i Fuso Platform |
| Power: | 140hp@2500rpm | 170hp@2500rpm |
| Torque: | 420Nm@1500rpm | 520Nm@1500rpm |
| Gearbox: | MO36S6 (6F + 1R) | MO36S6 (6F + 1R) |
| Suspension: | Parabolic Suspension at front and rear | Parabolic Suspension at front and rear |
| Overall length: | 9.8 m | 9.8 m |
| Overall width: | 2.35 m | 2.35 m |
| Structure: | Mild steel understructure with aluminium alloy extrusion subframe | Mild steel understructure with aluminium alloy extrusion subframe |
| Seat model: | Harita | Harita |
| Seat capacity: | 49 + 1 + 1D/ 39 + 1 + 1D | 49 + 1 + 1D/ 39 + 1 + 1D |
| Seat layout: | 3x2/ 2x2 | 3x2/ 2x2 |
| Seat type: | Bench Type/ High Head Rest | Bench Type/ High Head Rest |
| AC: | No | Yes |
-
